New for 2017 and set to be the flagship of our e-Safe range. We introduce e-SafePRO.



Designed specifically for those who desire to bring about the eradication of utility service strikes and are therefore looking for the best of the best when it comes to their weapon of choice. The e-SafePRO takes excellence to another level with the introduction of a swathe of new and uprated features. These include 3 different deployment methods “Baseline”, “Syncline” and “Switchback”.

The innovative Chronos Masking feature has also received an update and is now enabled with a more intuitive 4 stage, surface down process.

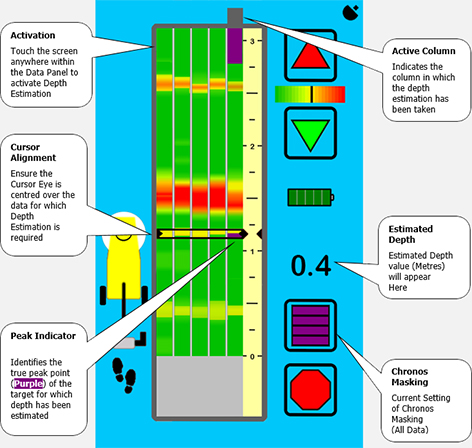

To the Depth Estimation feature we have now added something we call “TrackBack”.

The biggest change of all however looks you right in the face. The e-SafePRO is equipped with a Progressive 5 lane data View. This means the operator now has the ability to display up to 5 sets of parallel data all at the same time, side by side and in the order of collection.

DATA COLLECTION MODES



Baseline

If you collect data using the Baseline method, then your 5 sets of data will be aligned based on a common starting line such as a straight kerb line at the beginning of your data collection. This is the most common method of data collection and can be conducted in either a forward or reverse direction. Baseline-1.jpg

Syncline

For those occasions when there is no opportunity to start a series of data collections from a topographical straight edge such as a handy kerb line. Syncline enable the operator to start and end each parrallel data collection (transect) at an unrelated or random point from the preceding one. To ensure each set of data collected can be properly aligned, the operator may choose to mark a known point in each set of data collected. This may be something like a visible tar or scar line in the ground surface. A marked centre or junction line in a highway, or an arbitrary line marked by the operator for the purpose.  Baseline-Syncline.jpg

Switchback

For those situations where the operator is collecting long swathes of data ie. up to 16 linear metres at a time. Using the Switchback method of data collection enables the operator to alternate their direction of data collection thereby reducing the amount of time the they are simply returning to their common start point rather than collecting data while walking. When you consider some operators may walk anything up to 12km per day, this "return time" can result in a considerable amount of wasted effort. Switchback.jpgSwitchback-Syncline.jpg



CHRONOS MASKING

The Chronos Masking feature provides a means by which data may be manipulated by the operator, in order to better inform the decision making process; with regard to the likely validity of any potential target visible in the data, based on its estimated depth with respect to other items within the same data set. This is achieved by separating all data; prior to display, into distinct groups based on units of time which in GPR terms can be equated to relative depth. These groups of data may then be individually masked (turned on or off) by the operator effectively creating a layering effect within the data.

All e-Safe data displayed on screen is the final product of captured signals that have been reflected back; within fixed time intervals, by features within the ground over which the e-Safe has been deployed. Those signals received in the shortest timeframe are reflected back by features nearest to the surface and therefore categorised as being from the Near Surface layer, or NS for short. Conversely; those received over the longest timeframe are reflected back by features furthest from the surface and therefore categorised as being from the Deepest layer or DT for short. All other signals received naturally fall between these two extremes which; for easier reference, are subdivided once more into Shallow (SW) and Deep (DP) respectively. Using these broad but simple categories, an operator may quickly form an opinion as to the depth of a particular target relative to that of another.

As the speed of all signals received will not be constant due to changing ground conditions, it is not possible to assign absolute values in respect to the depth to/from, for each of these layers. Each division is therefore calculated based on a percentage of the overall timeframe within each data set. These are preset as follows: -

 CHRONOS MASKING LEVELS
TOTAL TIMEFRAME ACTION ICON

ALL

CHRONOS MASKING OFF

No Chronos Masking is applied and ALL DATA is displayed.


25%

LAYER 1 – NEAR SURFACE (NS)

Only data formed from signals returning within the shortest timeframe are shown.

All other data is hidden.


25%

LAYER 2 – SHALLOW (SW)

Only data formed from signals returning within a short timeframe (but not the very shortest timeframe)
are shown.

All other data is hidden


25%

LAYER 3 – DEEP (DP)

Only data formed from signals returning over a long timeframe (but not the very longest timeframe)
are shown.

All other data is hidden


25%

LAYER 4 – DEEPEST (DT)

Only data formed from signals returning over the very longest timeframe are shown.

All other data is hidden

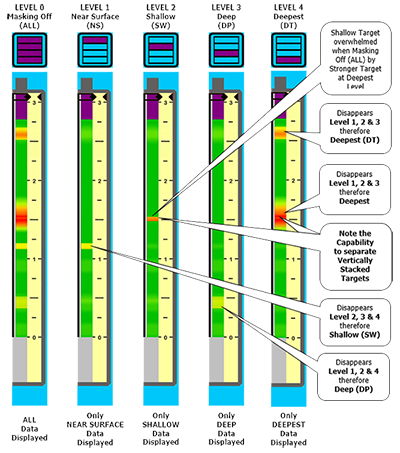

CHRONOS MASKING - EXAMPLE


The Chronos Masking feature is a very useful feature when used with single scan lines however; the greatest benefit will most likely be achieved when used with a number of Parallel Scan lines. This is because the Chronos Masking will affect the data within each scan line by equal measure. It therefore becomes very easy to visually analyse the data for the likely presence of linear features running through the area of interest.

Because no data is ever lost or deleted whilst using the Chronos masking feature, each Level may be turned on and off as many times as may be required. This makes it very simple for even the most novice operator to follow an iterative process and build an informed approximation as to the relative depths of likely services within a common data set.

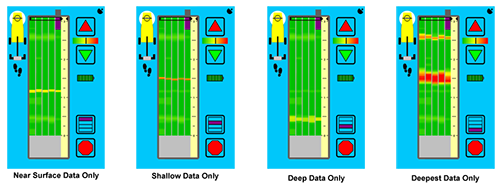

Screen example

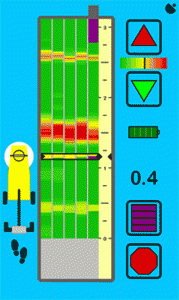

TrackBack




Using our time proven expertise in Ground Penetrating Radar technology (GPR) as a the base technology; our engineers have created a a device that is:-

e-Safe Logo

  • Weighing less than 17kg
  • Extremely portable
  • Has an easy user interface
  • Requires minimal training
  • Requires no prior knowledge of GPR

We are confident that this device will live up to its name and quickly become seen as an essential pre-excavation safety tool.

 e-Safe
electronic Service avoidance for everyone.







 e-Safe is not just another Cable Avoidance Tool

it's an All Service avoidance tool



By utilising Ground Probing Radar/Ground Penetrating Radar (GPR) as its underlying technology e-Safe is capable of detecting the likely presence of utility services and other below ground anomalies made from a wide range of materials including those that are non-conductive and/or non-metallic. In addition: Services are not required to be carrying “Live” power, an AC current or, emanating a discernible electromagnetic field, in order to be detectable.


Due to its unique design and easy user interface e-Safe does not require an operator to have extensive knowledge of or, prior training in GPR techniques, in order for it to be used effectively as a pre-excavation safety tool, for the purpose of service avoidance. In order to maintain safety standards and ensure maximum benefit is achieved however; we strongly recommend all operators seek training appropriate to their use and in some countries for particular trades or professions; training is often a mandatory requirement prior to first use.

e-Safe should in most ground conditions; where utility services are found in number, achieve an approximate depth penetration of up to 1.5 metres however; as with all GPR systems, the depth actually achieved will constantly vary according to the subsurface conditions prevailing at the time of use.

In a typical street environment: Pipes, cables or other linear features are often found to run in line with, or directly across the line of the street. Detection success may therefore often be improved by ensuring e-Safe is deployed at right angles to the perceived path within that environment. Where the path of a service is completely unknown: It is strongly recommended e-Safe is deployed in a variety of orientations in order to maximise the likelihood of detection.

Please Note

e-Safe has been designed as a service avoidance tool for use prior to manual excavation works. It has not been designed for the large area mapping of utilities. For this type of use we recommend our e-Spade lite system.
